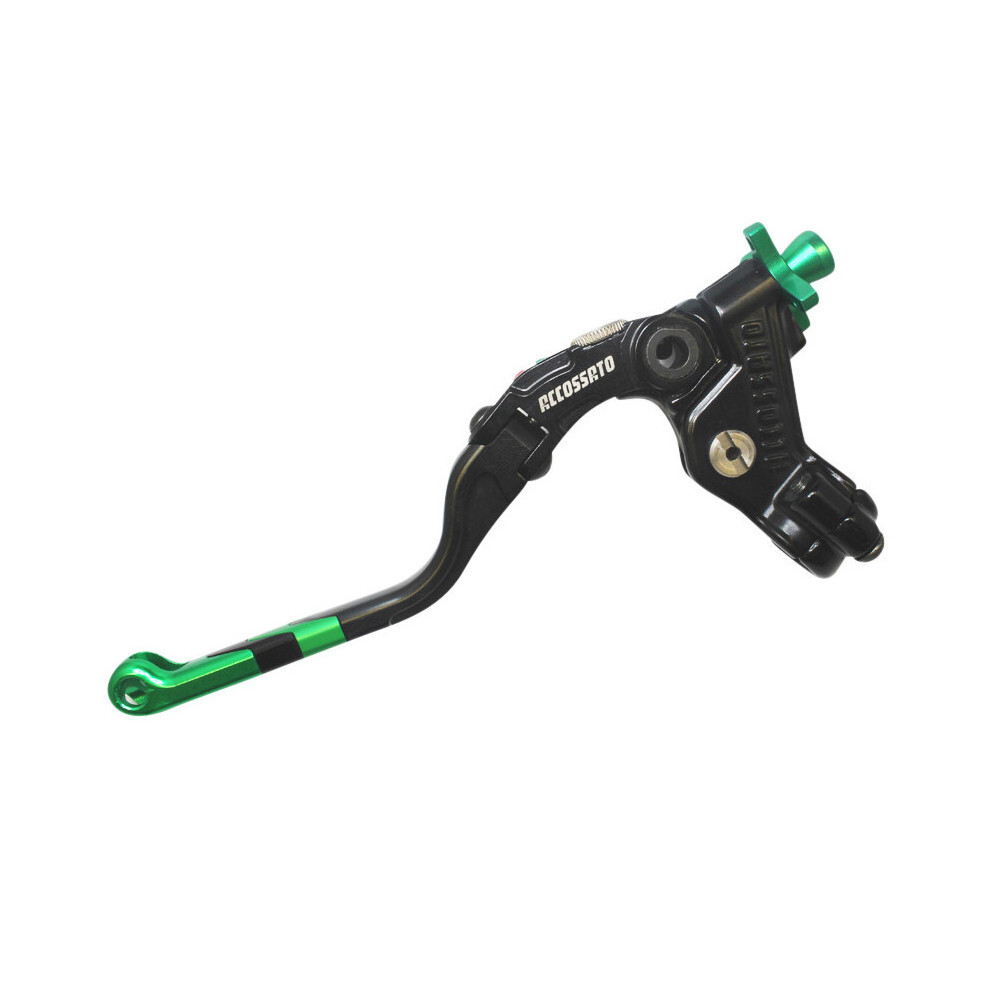

Accossato Full Clutch with Revolution Lever and switch option 29mm green

SKU: CF012G-29-L

Accossato Full Clutch with Revolution Lever and switch option 29mm green

Accossato CF012 Full Clutch with Revolution Lever is available in a range of lever distances - 24, 29, 32 and 34mm - and colors. The Revolution lever is CNC-machined and length adjustable by removing or adding inserts. The "click" cable adjustment knob matches the color of the lever. A microswitch is optional.

The best way to select the correct lever distance is to check the distance of your existing lever and decide whether to keep the same distance or to increase or decrease it. A longer distance, with the same movement of the lever, provides a longer cable recovery: the clutch will be released earlier but, the effort needed to activate the lever will be higher. A shorter distance, with the same movement of the lever, provides a shorter cable recovery: the clutch will be released later in the movement and less effort will be needed to activate the lever.

Revolution Full Clutch with integrated switch option 29mm green

  • folding Revolution lever, adjustable length with eyelet
  • matching green lever / cable adjustment knob
  • MI001 micro switch optional
  • lever height micro adjustment dial
  • cable adjustment knob with click
  • 29mm lever distance
  • option of M8 (MH005) or M10x1.25 (MH006) screw pitch mirror holder available (not included)
  • recommended for race use only

Accossato Full Clutch with Revolution Lever and switch option 29mm green

Accossato CF012 Full Clutch with Revolution Lever is available in a range of lever distances - 24, 29, 32 and 34mm - and colors. The Revolution lever is CNC-machined and length adjustable by removing or adding inserts. The "click" cable adjustment knob matches the color of the lever. A microswitch is optional.

The best way to select the correct lever distance is to check the distance of your existing lever and decide whether to keep the same distance or to increase or decrease it. A longer distance, with the same movement of the lever, provides a longer cable recovery: the clutch will be released earlier but, the effort needed to activate the lever will be higher. A shorter distance, with the same movement of the lever, provides a shorter cable recovery: the clutch will be released later in the movement and less effort will be needed to activate the lever.

Revolution Full Clutch with integrated switch option 29mm green

  • folding Revolution lever, adjustable length with eyelet
  • matching green lever / cable adjustment knob
  • MI001 micro switch optional
  • lever height micro adjustment dial
  • cable adjustment knob with click
  • 29mm lever distance
  • option of M8 (MH005) or M10x1.25 (MH006) screw pitch mirror holder available (not included)
  • recommended for race use only

$369.00

Make payments of $92.25 over 8 weeks and get it now!

OTHERS ALSO PURCHASED

$89.00

$299.00

$199.00

Brand: Accossato
SKU: CF012G-29-L


Suitable for motorcycles with cable-activated clutch
